Skybox AI Quick Start: Building Your First Integration

Overview

This tutorial walks you through building a simple web application that generates 360° skyboxes using the Skybox AI API. You'll learn the core concepts and build a working prototype in under 30 minutes.

What You'll Build:

A simple web form for text prompt input
API integration with proper authentication
Generation status tracking
Display of the completed skybox

Prerequisites:

Basic JavaScript/Node.js knowledge
A Skybox AI account with API access
Node.js installed on your machine

Step 1: Get Your API Key (5 minutes)

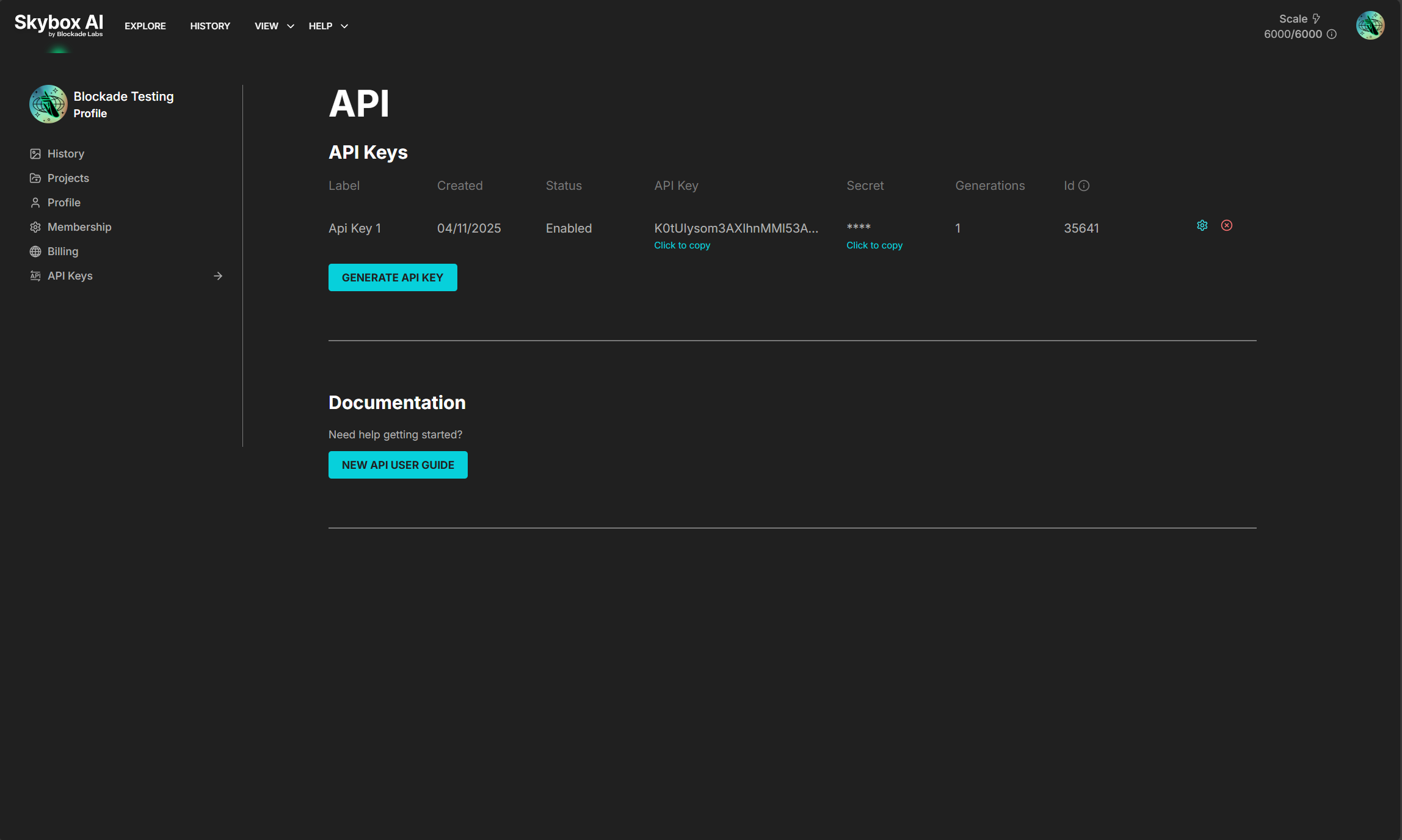

Log in to skybox.blockadelabs.com
Navigate to your API settings https://skybox.blockadelabs.com/api
Create and copy your API key (keep this secure!)

Important: Never expose your API key in client-side code. Always use it server-side.

Step 2: Set Up Your Project (5 minutes)

Create a new directory and initialize your project:

bash

mkdir skybox-demo
cd skybox-demo
npm init -y
npm install express axios dotenv

Create a .env file for your API key:

SKYBOX_API_KEY=your_api_key_here

Security Note: Add .env to your .gitignore file immediately.

Step 3: Create Your Backend (10 minutes)

Create server.js:

javascript

require('dotenv').config();
const express = require('express');
const axios = require('axios');

const app = express();
app.use(express.json());
app.use(express.static('public'));

const SKYBOX_API = 'https://backend.blockadelabs.com/api/v1';
const API_KEY = process.env.SKYBOX_API_KEY;

// Generate skybox endpoint
app.post('/api/generate', async (req, res) => {
  try {
    const { prompt, styleId } = req.body;

    const response = await axios.post(
      `${SKYBOX_API}/skybox`,
      {
        prompt: prompt,
        skybox_style_id: styleId || 1
      },
      {
        headers: {
          'x-api-key': API_KEY,
          'Content-Type': 'application/json'
        }
      }
    );

    res.json(response.data);
  } catch (error) {
    console.error('Generation error:', error.response?.data || error.message);
    res.status(500).json({
      error: 'Failed to generate skybox',
      details: error.response?.data
    });
  }
});

// Check status endpoint
app.get('/api/status/:id', async (req, res) => {
  try {
    const response = await axios.get(
      `${SKYBOX_API}/imagine/requests/${req.params.id}`,
      {
        headers: {
          'x-api-key': API_KEY
        }
      }
    );

    res.json(response.data);
  } catch (error) {
    console.error('Status check error:', error.response?.data || error.message);
    res.status(500).json({ error: 'Failed to check status' });
  }
});

const PORT = process.env.PORT || 3000;
app.listen(PORT, () => {
  console.log(`Server running on http://localhost:${PORT}`);
});

Step 4: Create Your Frontend (10 minutes)

Create a public directory, then create public/index.html:

html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Skybox AI Demo</title>
    <style>
        body {
            font-family: Arial, sans-serif;
            max-width: 800px;
            margin: 50px auto;
            padding: 20px;
        }
        .form-group {
            margin-bottom: 20px;
        }
        label {
            display: block;
            margin-bottom: 5px;
            font-weight: bold;
        }
        input, select, button {
            width: 100%;
            padding: 10px;
            font-size: 16px;
        }
        button {
            background-color: #007bff;
            color: white;
            border: none;
            cursor: pointer;
            margin-top: 10px;
        }
        button:hover {
            background-color: #0056b3;
        }
        button:disabled {
            background-color: #ccc;
            cursor: not-allowed;
        }
        #status {
            margin-top: 20px;
            padding: 15px;
            border-radius: 5px;
        }
        .info { background-color: #d1ecf1; }
        .success { background-color: #d4edda; }
        .error { background-color: #f8d7da; }
        #result {
            margin-top: 20px;
        }
        #skybox-image {
            width: 100%;
            border-radius: 10px;
        }
    </style>
</head>
<body>
    <h1>Skybox AI Generator</h1>

    <div class="form-group">
        <label for="prompt">Scene Description:</label>
        <input
            type="text"
            id="prompt"
            placeholder="e.g., A futuristic city at sunset with neon lights"
        >
    </div>

    <div class="form-group">
        <label for="style">Style:</label>
        <select id="style">
            <option value="1">Fantasy Landscape</option>
            <option value="2">Sci-Fi</option>
            <option value="3">Modern Interior</option>
            <option value="10">Digital Painting</option>
        </select>
    </div>

    <button id="generateBtn" onclick="generateSkybox()">Generate Skybox</button>

    <div id="status"></div>
    <div id="result"></div>

    <script>
        let checkInterval;

        async function generateSkybox() {
            const prompt = document.getElementById('prompt').value;
            const styleId = document.getElementById('style').value;
            const statusDiv = document.getElementById('status');
            const resultDiv = document.getElementById('result');
            const generateBtn = document.getElementById('generateBtn');

            if (!prompt) {
                alert('Please enter a scene description');
                return;
            }

            // Reset UI
            resultDiv.innerHTML = '';
            statusDiv.className = 'info';
            statusDiv.textContent = 'Submitting request...';
            generateBtn.disabled = true;

            try {
                // Submit generation request
                const response = await fetch('/api/generate', {
                    method: 'POST',
                    headers: {
                        'Content-Type': 'application/json'
                    },
                    body: JSON.stringify({ prompt, styleId: parseInt(styleId) })
                });

                const data = await response.json();

                if (!response.ok) {
                    throw new Error(data.error || 'Generation failed');
                }

                // Start checking status
                checkStatus(data.obfuscated_id);

            } catch (error) {
                statusDiv.className = 'error';
                statusDiv.textContent = `Error: ${error.message}`;
                generateBtn.disabled = false;
            }
        }

        async function checkStatus(skyboxId) {
            const statusDiv = document.getElementById('status');
            const resultDiv = document.getElementById('result');
            const generateBtn = document.getElementById('generateBtn');

            statusDiv.className = 'info';
            statusDiv.textContent = 'Generation in progress...';

            checkInterval = setInterval(async () => {
                try {
                    const response = await fetch(`/api/status/${skyboxId}`);
                    const data = await response.json();

                    if (data.status === 'pending' || data.status === 'dispatched') {
                        statusDiv.textContent = `Status: ${data.status}... Please wait.`;
                    } else if (data.status === 'processing') {
                        statusDiv.textContent = 'Processing your skybox... Almost there!';
                    } else if (data.status === 'complete') {
                        clearInterval(checkInterval);
                        statusDiv.className = 'success';
                        statusDiv.textContent = 'Skybox generated successfully!';

                        resultDiv.innerHTML = `
                            <h3>Your Skybox:</h3>
                            <img id="skybox-image" src="${data.file_url}" alt="Generated Skybox">
                            <p><a href="${data.file_url}" target="_blank">Open Full Size</a></p>
                        `;

                        generateBtn.disabled = false;
                    } else if (data.status === 'error' || data.status === 'abort') {
                        clearInterval(checkInterval);
                        statusDiv.className = 'error';
                        statusDiv.textContent = `Generation failed: ${data.error_message || data.status}`;
                        generateBtn.disabled = false;
                    }

                } catch (error) {
                    clearInterval(checkInterval);
                    statusDiv.className = 'error';
                    statusDiv.textContent = `Error checking status: ${error.message}`;
                    generateBtn.disabled = false;
                }
            }, 3000); // Check every 3 seconds
        }
    </script>
</body>
</html>

Step 5: Run Your Application

Start the server:

bash

node server.js

Open your browser to http://localhost:3000

Understanding the Code

Backend (server.js):

/api/generate - Submits a generation request to Skybox AI
/api/status/:id - Polls for generation status
API key is kept secure on the server side

Frontend (index.html):

Simple form for prompt and style input
Submits request via backend
Polls status every 3 seconds
Displays completed skybox image

What's Happening Behind the Scenes

User submits prompt → Frontend sends to your backend
Backend calls Skybox AI API → Returns generation ID and initial status
Frontend polls status → Checks every 3 seconds for completion
Generation completes → Display the skybox image URL

Typical Timeline:

Queue time: 0-30 seconds (depends on traffic)
Generation time: 25-45 seconds
Total: ~30-75 seconds

Common Issues and Solutions

"Failed to generate skybox"

Check your API key is correct in .env
Verify you have available generations in your quota
Check the console for detailed error messages

Status stuck on "pending"

Normal during high traffic periods
The queue system is working as expected
Generation will process when capacity available

"Rate limit exceeded"

You've hit your generations per minute limit
Wait for the next minute window
Consider upgrading your plan

"Cannot GET /"

Make sure you created the public directory
Verify index.html is inside the public folder
Check that app.use(express.static('public')); is in your server.js

Next Steps

Now that you have a working integration, consider:

Enhanced Integration Guide - Check out our follow-up guide for more enhanced integrations

Enhance Prompt and Strict Prompt - Moderate customer prompt requests.
Style selection - Fetch styles via API and populate dropdown
Image caching - Store generated skyboxes locally
Remix functionality - Allow users to remix existing generations
Export options - Add buttons for different export formats

Additional Resources

Full API Documentation: api-documentation.blockadelabs.com
Service Status: status.blockadelabs.com

Congratulations! You've built your first Skybox AI integration. This foundation can be expanded into full production applications.
